The Complete Guide to Electric Fencing in South Africa: Regulations & Best Practices

Electric Fencing: Your First Line of Perimeter Defense

Electric fencing is one of the most effective perimeter security solutions for South African properties. It provides a powerful psychological and physical deterrent that stops intruders before they reach your walls, windows, or doors.

But electric fencing in South Africa comes with strict regulations, technical requirements, and safety considerations. Install it wrong and you could face legal liability, insurance issues, or worse—a system that doesn't protect you when you need it most.

This complete guide covers everything you need to know: legal requirements, technical specifications, installation best practices, and how to choose the right system for your Johannesburg property.

Understanding Electric Fencing Technology

How Electric Fencing Works

An electric fence energizer sends high-voltage, low-amperage pulses through conductive wires mounted on your perimeter wall or fence. When someone touches the wires, they complete the circuit and receive a painful but non-lethal shock.

Key specifications:
• Voltage: 6,000-10,000 volts (regulated maximum in SA)
• Current: Less than 5 milliamps (safe, non-lethal)
• Pulse frequency: 1-2 pulses per second
• Pulse duration: 0.1-0.3 milliseconds

The high voltage creates the deterrent effect (painful shock), while the low current and short pulse duration prevent serious injury or death.

Types of Electric Fencing

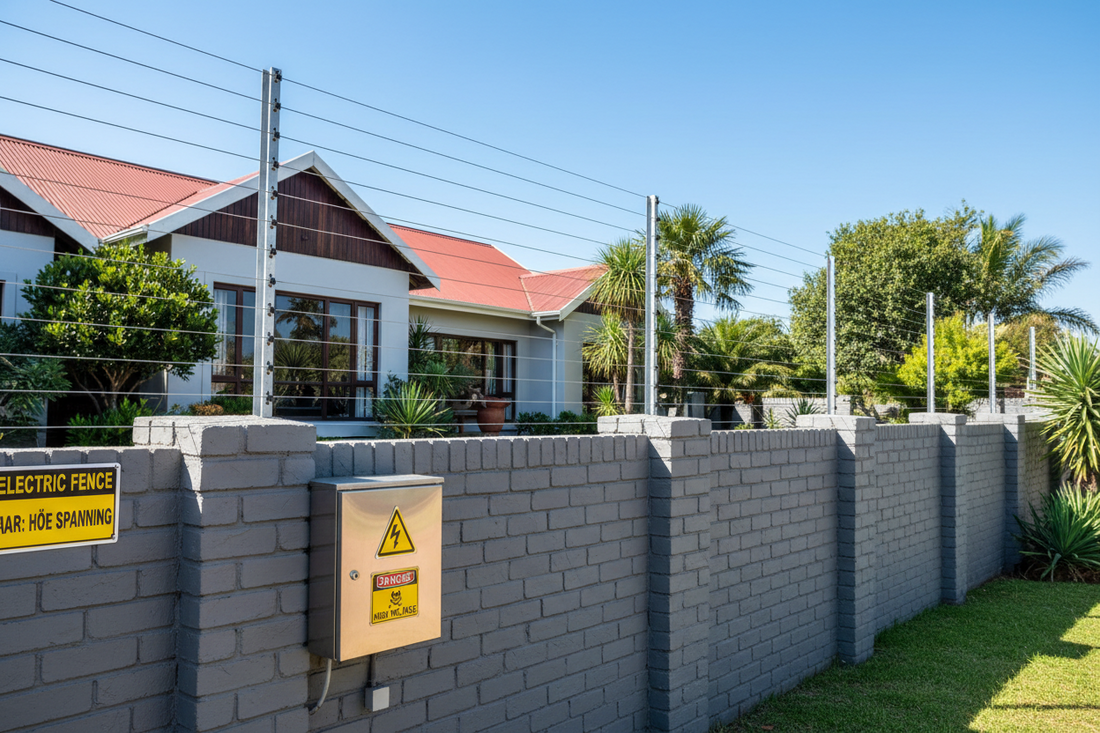

Wall-top electric fencing:
• Most common for residential properties
• Mounted on top of existing boundary walls
• 6-8 strands of wire, 150-200mm spacing
• Height: 500-600mm above wall
• Cost: R180-R350 per meter installed

Free-standing electric fencing:
• Used where no wall exists
• Requires sturdy posts every 2-3 meters
• 8-12 strands of wire
• Height: 1.8-2.4 meters total
• Cost: R250-R450 per meter installed

Razor wire + electric combination:
• Maximum security option
• Razor wire provides physical barrier
• Electric wires add shock deterrent
• Common for commercial properties
• Cost: R300-R550 per meter installed

South African Legal Requirements (SANS 10222-3)

Electric fencing in South Africa is governed by SANS 10222-3:2003, the national standard for electric fence energizers. Compliance is not optional—it's legally required and affects your insurance coverage.

Mandatory Requirements

1. Energizer Compliance
• Must be SABS-approved and marked with SANS 10222-3 compliance
• Maximum output: 10,000 volts, 5 joules
• Pulse rate: Maximum 1.5 pulses per second
• Must have built-in safety features (current limiting, pulse duration control)

2. Warning Signs
• Mandatory on all electric fences
• Minimum size: 100mm x 200mm
• Must display: "DANGER - ELECTRIC FENCE" in English and at least one other official language
• Spacing: Maximum 10 meters apart, visible from both sides
• Color: Yellow background with black text and lightning symbol
• Cost: R15-R35 per sign

3. Height Restrictions
• Minimum height above ground: 1.5 meters (to prevent children touching)
• Exception: Wall-top fencing where wall is minimum 1.5m high
• Maximum total height: 2.4 meters (municipal bylaws may vary)

4. Earthing (Grounding)
• Proper earth stake required (minimum 1.2m copper or galvanized rod)
• Earth resistance: Less than 100 ohms (test annually)
• Multiple earth stakes for long fence runs (every 100-150 meters)
• Earth wire must be separate from fence wires

5. Alarm Integration
• Not legally required but highly recommended
• Energizer should trigger alarm when fence is cut or shorted
• Armed response integration for immediate response

What's Prohibited

• Lethal voltage/current: Energizers exceeding SANS limits
• Continuous current: Must be pulsed, not continuous
• Barbed wire electrification: Cannot electrify barbed wire (razor wire is separate)
• Inadequate signage: Missing or insufficient warning signs
• Low-height installation: Below 1.5m where accessible to children

Liability and Insurance

If your electric fence doesn't comply with SANS 10222-3:

• Criminal liability: You can be prosecuted if someone is seriously injured
• Civil liability: You're liable for damages if someone is hurt
• Insurance void: Claims may be denied for non-compliant installations
• Municipal fines: Some municipalities actively enforce compliance

Bottom line: Only use SABS-approved energizers and ensure professional installation with proper signage.

Choosing the Right Energizer

The energizer (also called a charger or controller) is the heart of your electric fence system. Choosing the right one depends on fence length, vegetation, and security requirements.

Energizer Power Ratings

0.5-1 Joule:
• Fence length: Up to 200 meters
• Best for: Small residential properties, minimal vegetation
• Cost: R1,200-R2,500
• Brands: Nemtek Agri 0.5J, Stafix X1

1-3 Joules:
• Fence length: 200-500 meters
• Best for: Medium residential, light vegetation
• Cost: R2,500-R4,500
• Brands: Nemtek Wizard 2, JVA MB2, Gallagher M300

3-5 Joules:
• Fence length: 500-1,000 meters
• Best for: Large properties, heavy vegetation
• Cost: R4,500-R8,000
• Brands: Nemtek Wizard 4, Stafix X3, JVA MB4

5+ Joules:
• Fence length: 1,000+ meters
• Best for: Farms, estates, game reserves
• Cost: R8,000-R15,000+
• Brands: Gallagher M5000, Nemtek Agri 10

Essential Energizer Features

Must-have features:
• SABS approval: SANS 10222-3 compliance mark
• Battery backup input: Continues working during load shedding
• Alarm output: Triggers alarm when fence is compromised
• Voltage display: Shows current fence voltage
• Lightning protection: Built-in surge protection
• Adjustable voltage: Comply with regulations while maintaining effectiveness

Nice-to-have features:
• Zone monitoring: Identifies which section was triggered
• Remote monitoring: Check fence status via app
• Low battery warning: Alerts when backup battery is weak
• Tamper alarm: Alerts if energizer cover is opened
• Dual voltage output: Different voltages for different zones

Recommended Brands for South Africa

Nemtek:
• South African brand, excellent local support
• Wide range from residential to agricultural
• Wizard series popular for residential
• Cost: R1,500-R8,000

Stafix:
• New Zealand brand, well-established in SA
• Known for reliability and durability
• Good performance in vegetation
• Cost: R2,000-R10,000

JVA (Jolt Voltage Animals):
• Australian brand, strong SA presence
• MB series popular for security applications
• Advanced monitoring features
• Cost: R2,500-R12,000

Gallagher:
• Premium brand, excellent for large properties
• Superior build quality and longevity
• Higher cost but worth it for demanding applications
• Cost: R4,000-R20,000+

Wire Selection and Installation

Wire Types

Galvanized steel wire:
• Most common and cost-effective
• 2.0-2.5mm thickness
• Lifespan: 8-12 years in Johannesburg climate
• Cost: R8-R15 per meter
• Rust-resistant but will corrode eventually

Stainless steel wire:
• Premium option, excellent corrosion resistance
• 1.6-2.0mm thickness
• Lifespan: 15-20+ years
• Cost: R18-R30 per meter
• Worth it for coastal areas or high-maintenance environments

Aluminum wire:
• Lightweight, good conductivity
• 2.5mm thickness
• Lifespan: 10-15 years
• Cost: R12-R20 per meter
• Less common, mainly for agricultural use

High-tensile wire:
• Stronger, less sagging
• 2.0-2.5mm thickness
• Lifespan: 12-18 years
• Cost: R10-R18 per meter
• Best for long spans between posts

Wire Configuration

Standard residential wall-top (6-8 strands):
• Strand 1 (bottom): 50mm above wall
• Strands 2-7: 75mm spacing
• Strand 8 (top): 500-600mm above wall
• Total height: 500-600mm

Alternating live/earth configuration:
• Strands 1, 3, 5, 7: Live (connected to energizer positive)
• Strands 2, 4, 6, 8: Earth (connected to earth stake)
• Advantage: Shock even if intruder doesn't touch ground
• Recommended for wall-top installations

All-live configuration:
• All strands connected to energizer positive
• Requires intruder to be grounded for shock
• Simpler wiring but less effective
• Common for free-standing fences

Installation Best Practices

Bracket and Insulator Selection

Brackets:
• Galvanized steel or stainless steel
• Spacing: Every 2-3 meters maximum
• Wall-top brackets: L-shaped or straight
• Must be securely anchored (chemical anchors or expansion bolts)
• Cost: R25-R60 per bracket

Insulators:
• UV-resistant plastic (polycarbonate or nylon)
• Must prevent wire contact with bracket
• Replace every 5-7 years (UV degradation)
• Cost: R3-R8 per insulator

Tensioning

Proper wire tension is critical for effectiveness and longevity:

• Too loose: Wires sag, easy to push apart, looks unprofessional
• Too tight: Wires break, brackets pull out, excessive stress on insulators
• Correct tension: Firm but with slight give (about 10-15mm deflection when pressed)

Tensioning technique:
1. Start from energizer end
2. Pull wire hand-tight
3. Use wire strainer for final tensioning
4. Secure with wire clamps or crimps
5. Check tension after 24 hours (wire stretches initially)

Corners and Angles

• Use corner brackets or posts for direction changes
• Avoid sharp angles (minimum 90-degree turns)
• Use strain insulators at corners
• Extra brackets within 500mm of corners
• Consider separate zones for complex perimeters

Vegetation Management

Vegetation touching electric fence wires drains power and reduces effectiveness:

• Clearance required: Minimum 300mm from wires
• Regular trimming: Monthly in summer, quarterly in winter
• Herbicide option: Spray beneath fence line (check municipal regulations)
• Gravel strip: 500mm gravel strip beneath fence prevents growth
• Higher joule energizer: Compensates for some vegetation contact

Load Shedding Solutions

Your electric fence MUST work during power outages—that's when you're most vulnerable.

Battery Backup

Minimum requirement:
• 12V 7Ah battery: 12-24 hours backup (small fence, low joule energizer)
• 12V 12Ah battery: 24-48 hours backup (medium fence)
• 12V 18Ah battery: 48-72 hours backup (large fence or high joule)
• Cost: R350-R800

Battery lifespan:
• 3-5 years typical
• Shorter with frequent deep discharge (load shedding accelerates aging)
• Replace when runtime drops below 12 hours

Solar Power Option

For ultimate load shedding immunity:

• 50-100W solar panel: R1,500-R3,000
• Solar charge controller: R800-R1,500
• Deep-cycle battery (100Ah): R2,500-R4,000
• Total cost: R5,000-R9,000
• Benefit: Indefinite runtime, battery always charged

Maintenance Schedule

Monthly

• Check fence voltage (should be 6,000-8,000V minimum)
• Inspect for vegetation contact
• Test alarm integration
• Visual inspection for damaged wires or insulators

Quarterly

• Trim vegetation
• Check all connections for corrosion
• Test battery backup (disconnect mains power)
• Verify warning signs are visible and intact

Annually

• Professional inspection and testing
• Earth resistance testing
• Replace damaged insulators
• Check bracket security
• Verify SABS compliance
• Insurance compliance certificate (if required)

Every 3-5 Years

• Replace backup battery
• Replace UV-degraded insulators
• Consider energizer upgrade if technology has advanced

Common Problems and Solutions

Low Voltage

Symptoms: Voltage below 6,000V, weak shock
Causes: Vegetation contact, poor earthing, wire breaks, energizer fault
Solution: Clear vegetation, check earth resistance, inspect for breaks, test energizer output

False Alarms

Symptoms: Alarm triggers with no intrusion
Causes: Animals, vegetation, loose wires, lightning
Solution: Adjust alarm sensitivity, clear vegetation, tighten wires, install lightning arrestors

No Power

Symptoms: Zero voltage, energizer not clicking
Causes: Power failure, blown fuse, dead battery, energizer failure
Solution: Check mains power, replace fuse, test/replace battery, test energizer

Corrosion

Symptoms: Rusty wires, poor conductivity, voltage drop
Causes: Age, moisture, dissimilar metals
Solution: Replace corroded sections, use stainless steel wire, apply anti-corrosion spray

Cost Breakdown

Small Residential Property (50m perimeter)

• Energizer (1-2J): R2,500
• Wire (6 strands x 50m): R2,400
• Brackets and insulators: R1,500
• Warning signs: R200
• Battery backup: R500
• Installation labor: R3,000
• Total: R10,100

Medium Residential Property (150m perimeter)

• Energizer (2-3J): R3,500
• Wire (8 strands x 150m): R10,800
• Brackets and insulators: R4,500
• Warning signs: R400
• Battery backup: R700
• Installation labor: R8,000
• Total: R27,900

Large Property (300m perimeter)

• Energizer (3-5J): R6,000
• Wire (8 strands x 300m): R21,600
• Brackets and insulators: R9,000
• Warning signs: R600
• Battery backup (solar): R6,000
• Installation labor: R15,000
• Total: R58,200

Electric Fence vs Alternatives

Electric Fence vs Razor Wire

Electric fence advantages: Active deterrent, alarm integration, less aggressive appearance
Razor wire advantages: Physical barrier, no power required, lower maintenance
Best solution: Combination of both for maximum security

Electric Fence vs Security Spikes

Electric fence advantages: Shock deterrent, alarm capability, more effective
Security spikes advantages: No power needed, zero maintenance, lower cost
Best solution: Electric fence for security, spikes for aesthetics/budget areas

The Bottom Line

Electric fencing is one of the most effective perimeter security solutions for South African properties, but only when installed correctly and maintained properly.

Key takeaways:
• Use only SABS-approved energizers (SANS 10222-3 compliance)
• Install proper warning signage (legal requirement)
• Ensure adequate battery backup for load shedding
• Maintain proper vegetation clearance
• Professional installation recommended for insurance and liability
• Budget R200-R350 per meter for quality installation

A properly installed and maintained electric fence provides 10-15 years of reliable perimeter protection. Cut corners on installation or compliance, and you risk legal liability, insurance issues, and a system that fails when you need it most.

Planning to install electric fencing? We provide free site assessments, SABS-compliant installations, and full insurance certification for Johannesburg properties. Contact us for a quote and ensure your electric fence is installed right the first time.
